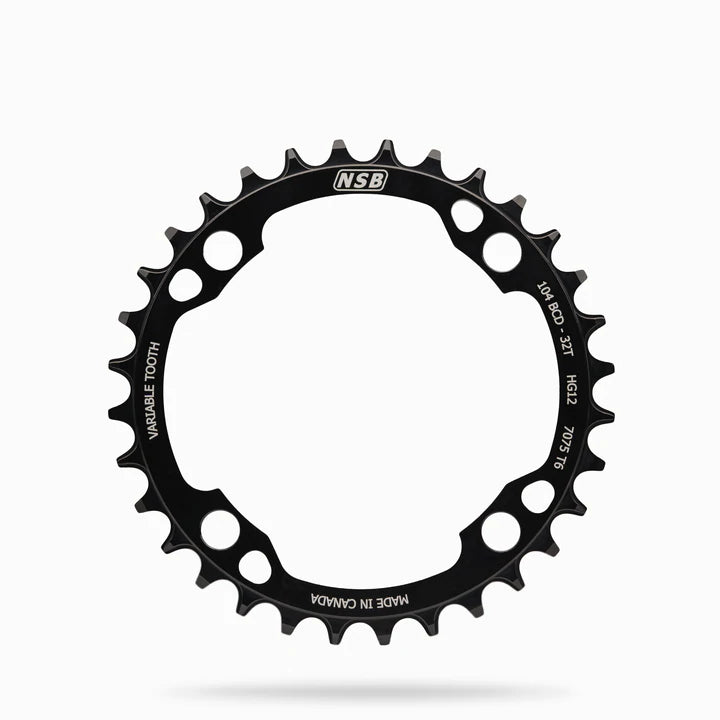

Narrow wide chainrings for Shimano direct-mount cranks. These chainrings are designed to provide an optimal chainline, giving the smoothest shifting across the whole cassette.
Our Shimano HG12 specific chainring tooth profile is mated with our proven narrow-wide tooth pattern to help retain the chain on the front ring during all types of riding. Utilizing the most common bolt pattern – 104mm BCD – these rings can mount to almost any crank.
Specifications:
- 104mm Bolt Diameter Circle (104 BCD)
- Bottom Bracket Types: BB30 GXP Boost
- Chainline: This varies with your crankset
- 30T: ~50mm on a 2×10 mid-ring mounting position
- 32T, 34T, 36T, 38T: ~52mm on a 2×10 mid-ring mounting position
- Machined from solid 7075 T6 Aluminum
- Anodized Black with Laser Etched Graphics
Compatible with Shimano 12 speed drivetrains only
Precision CNC Machined in Whistler, B.C.
Weight:
- 28T – 45g
- 30T – 44g
- 32T – 40g
- 34T – 44g
- 36T – 58g
- 38T – 66g
